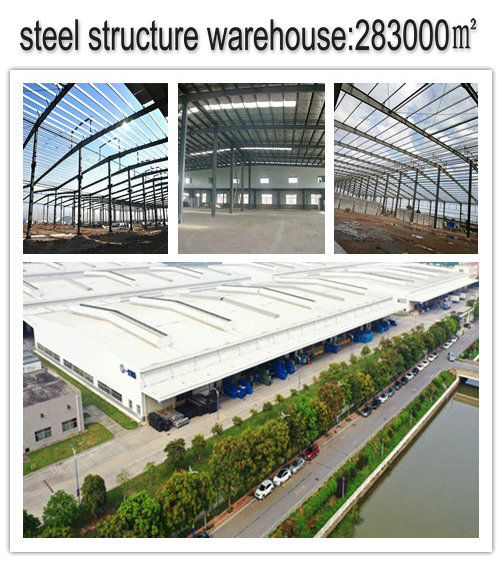

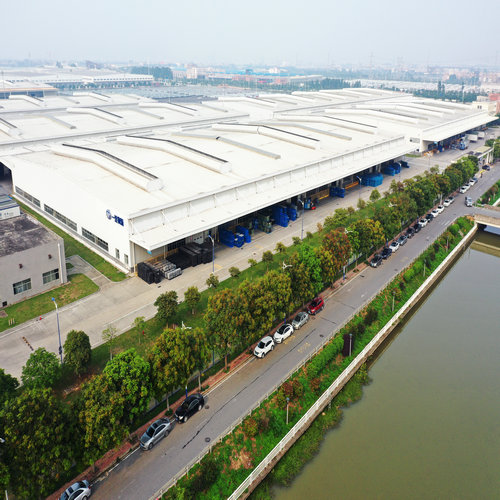

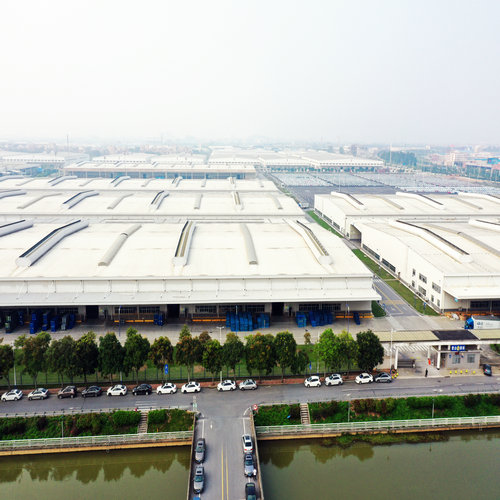

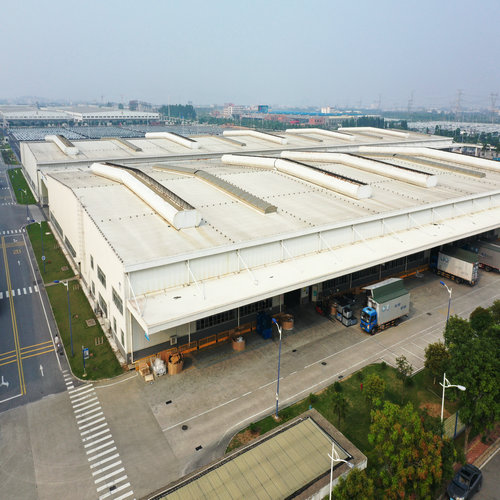

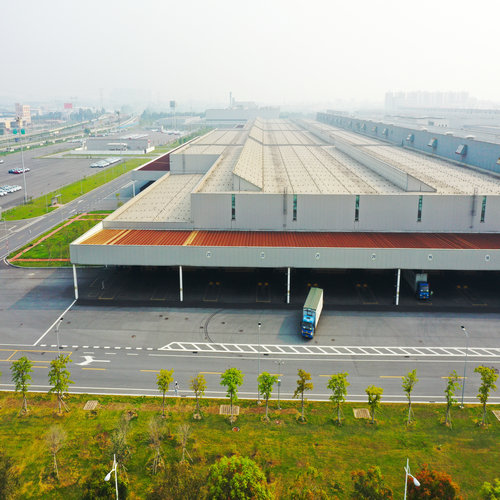

Steel Structure Warehouse Logistics Park
The steel structure material is included the H section,I section,Square tube,Circular Tube,Floor decking steel sheet,C section,Z section,Angle iron , Steelbar ,Steel plate.
polyurethane sandwich panel
polyurethane panel takes the polyurethane as core material.Except having the same characteristics od the epssandwich panel,the pu sandwich panel possesse the features of being nonflammable,wide range of service temperatures.The core material application temperature is between -196℃~+130℃,the instant service temperature can be reached up to +200℃.When being used in in low temperature environment ,pu sandwich panel is small shrinkage and non-brittle.therefore,it is an idea construstructive heat-insulating material for cold storage.Expect that,pu sandwich panel has the advantages of being of non-toxic,non-conrrosuveness,stable heat conductivity.The panel is extensively used as roof title,wall body, ceiling and partition wall in steel structure workshop and prefabricated house.
2.Product detials
1.Opinions |

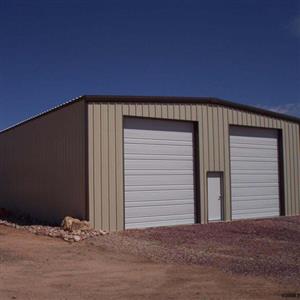

1)We can supply all kinds of steel structures, steel building, metal building, modular house, steel frame for warehouse, workshop, garage etc, steel beams, other riveting and welding parts. |
2)We can also make and develop new parts according to customers' drawings and detailed dimensions. |
|
2. Specifications |
1) Size: MOQ is 200m2, width X length X eave height, roof slope |
2) Type: Single slope, double slope, muti slope; Single span, double-span, Multi-span, single floor, double floors |
|
3) Base: Cement and steel foundation bolts |
|
4) Column and beam: Material Q345(S355JR)or Q235(S235JR) steel, all bolts connection! Straight cross-section or Variable cross-section |
|
5) Bracing: X-type or V-type or other type bracing made from angle, round pipe, etc |
|
6) C or z purlin: Size from C120~C320, Z100~Z200 |
|
7) Roof and wall panel: Single colorful corrugated steel sheet 0.326~0.8 mm thick, (1150 mm wide), or sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50 mm ~ 100 mm. |
|
8) Accessories: Semi-transparent skylight belts, Ventilators, down pipe, Galvanized gutter, etc |
|
9) Surface: Two lays of Anti-rust Painting |
|
10) Packing: Main steel frame without packing load in 40'OT, roof and wall panel load in 40'HQ |
|
3. Design Parameters |
If you need we design for you, pls supply us the following parameter together with detail size |
1) Live load on roof (KN/M2) |
|
2) Wind speed(KM/H) |
|
3) Snow load (KG/M2) |
|
4) Earthquake load if have |
|
5) Demands for doors and windows |
|
6) Crane (if have) , Crane span, crane lift height, max lift capacity, max wheel pressure and min wheel pressure! |
3.Advantages
1) Features: fast and flexible to assemble, safe, thermal and noise insulation, water proof and fire prevention;
2) Cost-effective: Fast and easy installation greatly shorten the construction time which reduce the costs;
3) Durability: The whole structure is easy in maintenance, which can be used for more than 50 years.
4) Perfect design: Perfect design completely avoids leaks and water seepage. Meanwhile, it's also in line with the national level of fire prevention.
5) Carrying capacity: can resists the impact of strong wind and seismic performance and bears heavy snow loads.
Due to the above advantages, combination of light china steel building structures in construction engineering, railway, petrochemical industry, water conservancy construction highway construction and military engineering and earthquake relief in the fields of temporary is widely used in construction.
4、Service flow path:
Discussing Project——Design Plan Drawing——Budget & Quote——Confirm Drawing&Quotation——Sign the Contract——Make the shop Drawing——Manufacturing——Transportation——Shipping——Foundation Ready——Guidance Installation——Finshed Installation
5.Market:
6.Company Profile:
Foshan Shengbang Steel Structure Co., Ltd.Possesses professional large-scale steel structure production equipments and the automatic spraying production
line, so we can satisfy the different customers demand.We takes "build your future" as mission and takes company growth as premise.The company has trained many
high quality marketing personnel, professional technician and construction workers.We take the customers' demand as the guidances, then provide reasonable,
scientific and effective solution for customers.We regard practical growth, innovationand group solidarity as our company spirit, so that we can offer all round service to customers.
