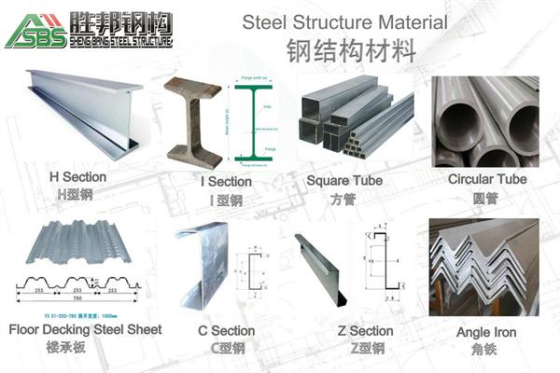

2.The detail material for the steel structure
3、Product detials
1.Opinions |

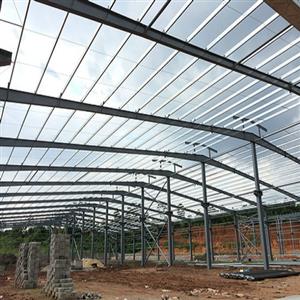

1)We can supply all kinds of steel structures, steel building, metal building, modular house, steel frame for warehouse, workshop, garage etc, steel beams, other riveting and welding parts. |
2)We can also make and develop new parts according to customers' drawings and detailed dimensions. |
|
2. Specifications |
1) Size: MOQ is 200m2, width X length X eave height, roof slope |
2) Type: Single slope, double slope, muti slope; Single span, double-span, Multi-span, single floor, double floors |
|
3) Base: Cement and steel foundation bolts |
|
4) Column and beam: Material Q345(S355JR)or Q235(S235JR) steel, all bolts connection! Straight cross-section or Variable cross-section |
|
5) Bracing: X-type or V-type or other type bracing made from angle, round pipe, etc |
|
6) C or z purlin: Size from C120~C320, Z100~Z200 |
|
7) Roof and wall panel: Single colorful corrugated steel sheet 0.326~0.8 mm thick, (1150 mm wide), or sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50 mm ~ 100 mm. |
|
8) Accessories: Semi-transparent skylight belts, Ventilators, down pipe, Galvanized gutter, etc |
|
9) Surface: Two lays of Anti-rust Painting |
|
10) Packing: Main steel frame without packing load in 40'OT, roof and wall panel load in 40'HQ |
|
3. Design Parameters |
If you need we design for you, pls supply us the following parameter together with detail size |
1) Live load on roof (KN/M2) |
|
2) Wind speed(KM/H) |
|
3) Snow load (KG/M2) |
|
4) Earthquake load if have |
|
5) Demands for doors and windows |
|
6) Crane (if have) , Crane span, crane lift height, max lift capacity, max wheel pressure and min wheel pressure! |
4.Provide datas

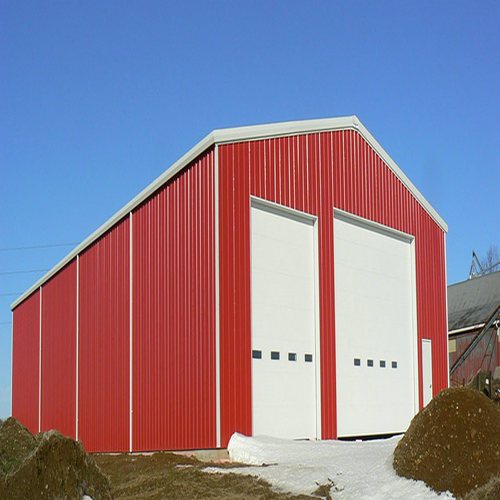

When we make a steel garage, we need to know the length, width and height:
§angle iron can be used as an column bracing
§steel warehouse with a concrete slab fixed to the ground
§can choose different closure methods, such as gables and only closed on both sides.
These steel garage, there are a number of different heights. Garage roof can decorate the color what you want.
Steel building can become totally enclosed or partially enclosed steel garages.
5.garage of PU sandwich panel physical and machanical properties
item |
unit |
Index of properties |
|||||
Ⅰ |
Ⅱ |
||||||
A |
B |
A |
B |
||||
density ≤ |
Kg/㎡ |
30 |
30 |
30 |
30 |
||
Compression strength Compressive stress under 10% deformation ≤ |
KPa |
100 |
100 |
100 |
150 |
||
Thermal conductivity coefficient ≤ |
w/(m.k) |
0.022 |
0.027 |
0.022 |
0.027 |
||
Water vapor permeability coefficient(23+2)℃/0% to 85%RH ≤ |
Ng/Pa.m.s |
6.5 |
6.5 |
6.5 |
|||
Water absorbing capacity ≤ |
% |
4 |
4 |
3 |
|||
flammability |
Grade1 |
Vertical combustion |
Average burning times |
30 |
30 |
||
250 |
250 |
||||||
Grade 2 |
Horizontal combustion |
Average burning intensity |
90 |
90 |
|||
50 |
50 |
First the walls were built up by a few courses to match the height of the front of the garage. We were able to use recycled bricks from another wall we were removing (we are in the midst of an extension to the main house). With the beam resting on the tops of the walls the garage felt strangely different. It was beginning to take shape.
