• Double Door Steel Structure Garage Double Door Steel Structure Garage

Double Door Steel Structure Garage

  • Place of origin : Guangdong,China
  • Model Number : Steel structure DDSSG
  • Price Terms : FOB price
  • Payment Terms : By T/T
  • Package : Seaworthy
  • Minimum Order : 1 set
  • Delivery Time : 20-45 days
  • Brand Name : SBS

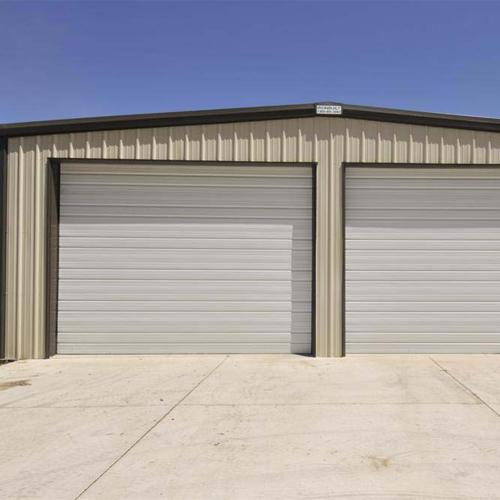

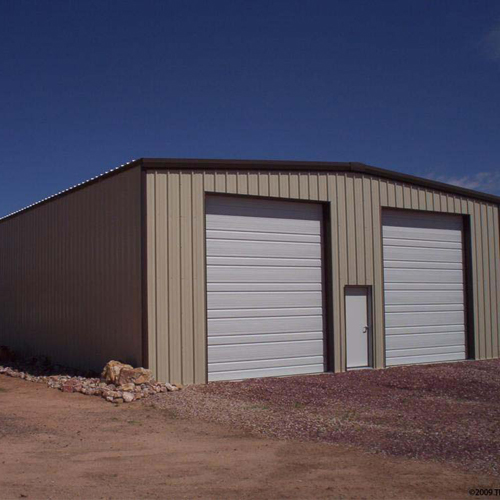

Double Door Steel Structure Garage

This garage, with its fast assembly speed, good thermal insulation, automatic electric shutters, and excellent quality, has a long service life.
The most important thing is that his total cost is very cheap.

Design_

1. Product Detail information

Steel Structure Garage is formed by portal frame structure mainly load bearing member are Steel Structure , including H section Steel Coloumn , Steel Beam , Steel Structural Basement , Bracing system for wall and roof  . In China the Main Structural we used Q345B Steel , yield strength 345Mpa, the secondary structure used Q235B steel .


2. Product details

Main structure

Steel Welded H Section

Purlin

C Section Channel or Z Section Channel

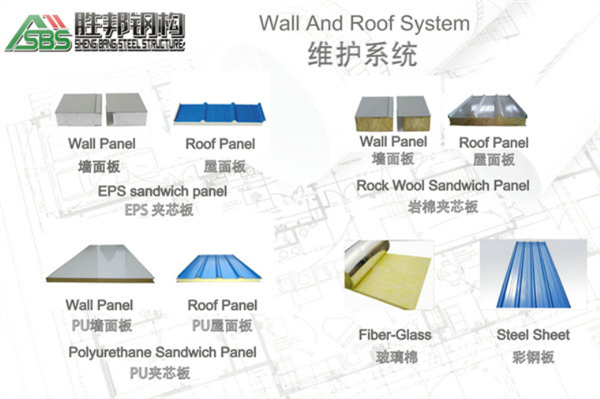

Roof Cladding

Sandwich Panel or Corrugated Steel Sheet with Fiber Glass Wool Coil

Wall Cladding

Sandwich Panel or Corrugated Steel Sheet

Tie Rod

Circular Steel Tube

Brace

Round Bar

Column & Transverse Brace

Angle Steel or H Section Steel or Steel Pipe

Knee Brace

Angle Steel

Roof Gutter

Color Steel Sheet

Rainspout

PVC Pipe

Door

Sliding Sandwich Panel Door or Metal Door

Windows

PVC/Plastic Steel/Aluminum Alloy Window

Connecting

High Strength Bolts

Packing

Can be loaded into 40ft'GP/HQ/OT, or 20 ft'container.

Drawing

We can make the design and quotation according to your requirement or your drawing

3. Advantage

Steel Structure Garage are very durable. They are strong enough to withstand heavy snowfall, high winds, and strong earthquakes. The steel paneling can also be coated with aluminum compounds to prevent rusting and increase the life of the panels. These pre-engineered steel buildings are also non-combustible so it’s unlikely they will be destroyed by fire. This makes them perfect for storing hazardous chemicals. In addition to the durability, another benefit is the speed of construction.

4. Transportation

Steel structure component volume is larger because it is mainly composed of steel column, steel beam, steel frame and the rigid support and so on. It need a professional transportation,the mainly transportation for export is as follow:

1) Seaworth

 Generally, our engineering technology department design the steel structures after customers' order and will be according to the 40 'HQ and 40' open top container inside size to design the shipment, usually, we use 40 'HQ and 40' open top shipping container shipment to pack steel structures.


2) Package for the steel frame

If you want to use the 40 HQ container to transportation the whole steel structure product. You can do the steel frame to package ,use the cable wire to fix. But you must paid for the steel frame and baling charges.


Link Stiffeners for Box Sections
Similar to wide-flange links, the maximum spacing of stiffeners for shear yielding built-up box links (e ≤ 1.6Mp /Vp) is dependent upon the magnitude of the link rotation angle. The equation for maximum spacing needed for the linksto develop a link rotation angle of 0.08 rad [specified as 20tw − (d − 2tf )/8] is derived in Berman and Bruneau (2005a). A similar equation was also derived for a 0.02 rad limit, resulting in a maximum required stiffener spacing of 37tw − (d − 2tf )/8. However, experimental and analytical data is only available to support the closer stiffener spacing required for the 0.08 rad link rotation angle. Therefore, that more restrictive stiffener spacing is required for all links until other data becomes available.
Prior to the 1994 Northridge earthquake, link-to-column connections were typically constructed in a manner substantially similar to beam-to-column connections in SMF. Link-to-column connections in EBF are therefore likely to share many of the same problems observed in moment frame connections. Consequently, in a manner similar to beam-to-column connections in SMF, the Provisions require that the performance of link-to-column connections be verified by testing in accordance with Section K2, or by the use of prequalified link-to-column connections in accordance with Section K1; there are no prequalified connections at the time of publication.
Company Profile:

Foshan Shengbang Steel Structure Co., Ltd.Possesses professional large-scale steel structure production equipments and the automatic spraying production
line, so we can satisfy the different customers demand.We takes "build your future" as mission and takes company growth as premise.The company has trained many
high quality marketing personnel, professional technician and construction workers.We take the customers' demand as the guidances, then provide reasonable,
scientific and effective solution for customers.We regard practical growth, innovationand group solidarity as our company spirit, so that we can offer all round service to customers.
