Prefab Warehouse Hangar Building

  • Place of origin : Guangdong,China
  • Model Number : Steel structure warehouse03
  • Price Terms : FOB price
  • Payment Terms : By T/T
  • Package : Seaworthy
  • Minimum Order : 1 set
  • Delivery Time : 30-45 days
  • Brand Name : SBS

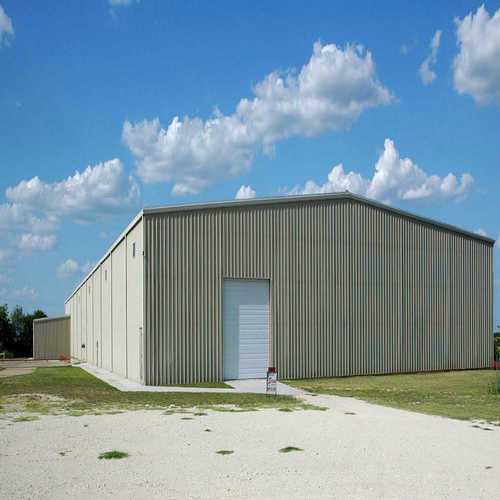

Prefab Warehouse Hangar Building

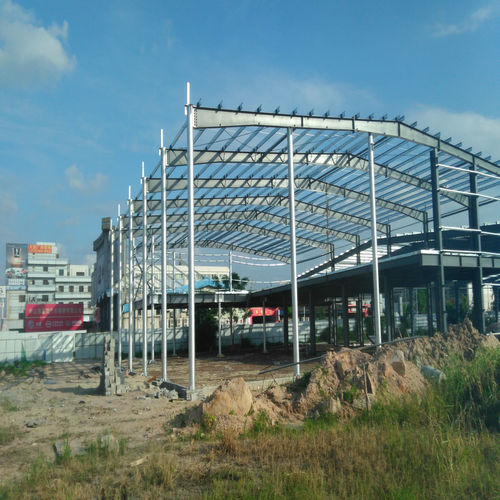

1.Steel Structure Warehouse Project

The main Steel Structure of the Prefab Warehouse Building  including Steel Column , Roof Beam , Anti-Wind Column , the Secondary Steel Structure mainly for Bracing , the wall and roof panel used 0.5mm or 0.6mm single colour sheet .Industry steel structure warehouse usually made of steel beams, steel columns, steel trusses and other components of the composition; each component using welds, bolts or rivets to connect.Prefabricated steel Structure workshop is an pre-engineered steel structure which is widely used for the large-scale workshop, or used for the warehouse, supermarkets, entertainment centers and other buildings.

Concrete and Steel Reinforcement
Concrete and steel reinforcement used in composite components in composite intermediate or special SFRS of Sections G2, G3, G4, H2, H3, H5 and H6 shall. Concrete and steel reinforcement used in composite components in composite ordinary SFRS of Sections G1, H1 and H4 shall satisfy the requirements of ACI 318

2、The detail material for the steel structure technical parameters

Steel shall be furnished according to the following specifications. Unless otherwise specified, structural carbon steel shall be furnished.
A. Carbon Steel: Structural carbon steel for bolted or welded construction shall conform to, AASHTO M270 (ASTM A709) grade 36 (grade 250).
B. Eyebars: Steel for eyebars shall be of a weldable grade. These grades include structural steel conforming to Structural Steel, AASHTO M270 (ASTM A709) grade 36 (grade 250) or AASHTO M270 (ASTM A709) grade 50W (grade 345W) with supplemental requirement S3 of
AASHTO M270 grade 50W (grade 345W) mandatory




3.Product detail

 Product Name

Prefabricated Steel Structure Warehouse



 Concrete and Steel


 X or V types, angle steel or round tube


 Two layers and anti-rust paint


 White, Grey, Blue, Green, etc


 Designed by your requirement


1. Stable Construction
2. Anti-seismic performance
3. Aesthetic appearance
4. Short construction period
5. High-speed installation
6. Life span durability
7. Environmental-Friendly product
8. Energy saving

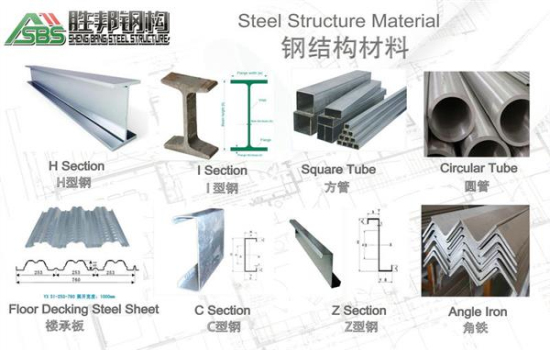

 Main component

 Base materials

 Cement and steel foundation bolts

 Main frame

 H beam (welded or hot rolled)




 C purlin (C120-320) or Z Purlin (Z100-200)


 Tie bar, lateral bracing, column bracing, knee bracing, etc


Normal bolt, high strength bolts, Galvanized bolt

 Roof & wall

 Sandwich panel, steel corrugated sheet


 Sliding door , rolling shutter


 PVC window, aluminum-alloy Window


 Skylight, ventilation, downpipe and galvanized gutter etc .



1) Features: fast and flexible to assemble, safe, thermal and noise insulation, water proof and fire prevention;
2) Cost-effective: Fast and easy installation greatly shorten the construction time which reduce the costs;
3) Durability: The whole structure is easy in maintenance, which can be used for more than 50 years.
4) Perfect design: Perfect design completely avoids leaks and water seepage. Meanwhile, it's also in line with the national level of fire prevention.
5) Carrying capacity: can resists the impact of strong wind and seismic performance and bears heavy snow loads.
Due to the above advantages, combination of light china steel building structures in construction engineering, railway, petrochemical industry, water conservancy construction highway construction and military engineering and earthquake relief in the fields of temporary is widely used in construction.



Welds designated as demand critical shall be made with filler metals meeting the
requirements specified in AWS D1.8/D1.8M clause 6.3. AWS D1.8/D1.8M requires that all seismic force resisting system
welds are to be made with filler metals classified using AWS A5 standards that
achieve the following mechanical properties:

Filler Metal Classification Properties for Seismic Force Resisting System Welds





70 ksi (480 MPa)

80 ksi (550 MPa)

Yield Strength, ksi (MPa)

58 (400) min

68 (470) min.

Tensile Strength

ksi (MPa) 70 (480) min

80 (550) min

Elongation, %

22 min

19 min

CVN Toughness

ft-lb (J) 20 (27) min

@ 0 °F (−18 °C)a

a Filler metals classified as meeting 20 ft-lbf (27 J) min. at a temperature lower than 0 °F

(−18 °C) also meet this requirement.


Steel structure is mainly composed of steel column, steel beam, steel frame and the rigid support and so on, so steel structure component volume is larger, The mainly transportation for export is as follow:

1). Seaworthy

 In general, after customer order, our engineering technology department design the steel structures will be according to the 40 'HQ and 40' open top container inside size      to design the shipment, in most cases, we use 40 'HQ and 40' open top shipping container shipment to pack steel structures.


2).Package for the steel frame


If you want to use the 40 HQ container to transportation the whole steel structure product. You can do the steel frame to package ,use the cable wire to fix. But you must paid for the steel frame and baling charges.



7.Company Profile:

Foshan Shengbang Steel Structure Co., Ltd.Possesses professional large-scale steel structure production equipments and the automatic spraying production
line, so we can satisfy the different customers demand.We takes "build your future" as mission and takes company growth as premise.The company has trained many
high quality marketing personnel, professional technician and construction workers.We take the customers' demand as the guidances, then provide reasonable,
scientific and effective solution for customers.We regard practical growth, innovationand group solidarity as our company spirit, so that we can offer all round service to customers.
