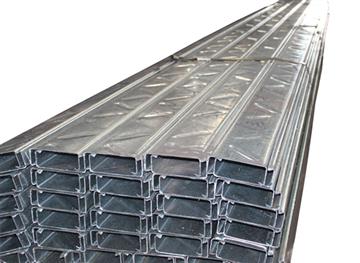

C steel was processed after hot rolling and cold bending. Its characteristics are: thin wall, light weight, good cross section performance, high strength (compared with the traditional steel) and can save 30% materials compared with the equivalent steel.
C type steel is widely used in purlin and wall beam steel structure building, also can combined into lightweight roof, carrier construction, etc. In addition, it can also be used for machinery and column, beam and arm light industrial manufacturing.
Name |
Size |
Inertia Moment cm4 |
Rotation Semi-moment |
Section Modulus cm4 |
||||||
h×b×c×t |
h |
b |
c |
t |
lx |
ly |
rx |
ry |
wx |
wy |
80×40×15×2.5 |
80 |
40 |
15 |
2.5 |
41.39 |
9.326 |
3.117 |
1.479 |
10.35 |
6.432 |
100×50×20×2.5 |
100 |
50 |
20 |
2.5 |
84.93 |
19.89 |
3.925 |
1.899 |
16.99 |
10.73 |
120×50×20×2.5 |
120 |
50 |
20 |
2.5 |
130.7 |
21.26 |
4.633 |
1.88 |
21.78 |
12.44 |
140×50×20×2.5 |
140 |
50 |
20 |
2.5 |
188.5 |
22.42 |
5.38 |
1.885 |
26.93 |
74.12 |
140×60×20×2 |
140 |
60 |
20 |
2 |
219.85 |
25.733 |
5.345 |
1.828 |
31.406 |
7.532 |
150×50×20×2 |
150 |
50 |
20 |
2 |
370.77 |
39.975 |
5.713 |
1.874 |
49.435 |
23.678 |
150×60×20×2 |
150 |
60 |
20 |
2 |
357.23 |
70.223 |
5.974 |
2.671 |
46.83 |
28.327 |
160×60×20×2 |
160 |
60 |
20 |
2 |
339.96 |
47.989 |
6.182 |
2.172 |
42.494 |
10.109 |
160×60×20×3 |
160 |
60 |
20 |
3 |
339.96 |
41.99 |
6.182 |
2.172 |
42.49 |
22.74 |
160×70×20×3 |
160 |
70 |
20 |
3 |
376.9 |
61.27 |
6.3 |
2.54 |
47.11 |
27.48 |
180×60×20×2 |
180 |
60 |
20 |
2 |
449.7 |
43.611 |
6.881 |
2.143 |
49.966 |
10.235 |
180×60×20×3 |
180 |
60 |
20 |
3 |
449.6 |
43.61 |
6.881 |
2.143 |
49.97 |
25.07 |
180×70×20×2 |
180 |
70 |
20 |
2 |
496.69 |
63.712 |
7.074 |
2.512 |
55.188 |
13.019 |
180×70×20×3 |
180 |
70 |
20 |
3 |
496.6 |
63.71 |
7.014 |
2.512 |
55.19 |
30.25 |
200×60×20×2 |
200 |
60 |
20 |
2 |
573.43 |
45.014 |
7.569 |
2.112 |
57.842 |
10.342 |
200×60×20×3 |
200 |
60 |
20 |
3 |
578.4 |
45.04 |
7.569 |
2.112 |
57.84 |
27.38 |
200×70×20×2 |
200 |
70 |
20 |
2 |
636.64 |
65.883 |
7.715 |
2.481 |
63.644 |
73.167 |
200×70×20×3 |
200 |
70 |
20 |
3 |
636.6 |
65.88 |
7.715 |
2.481 |
63.66 |
32.99 |
