• Modern steel villa design Modern steel villa design

Modern steel villa design

  • Place of origin : Guangdong,China
  • Model Number : Steel structure MSVD
  • Price Terms : FOB price
  • Payment Terms : By T/T
  • Package : Seaworthy
  • Minimum Order : 1 set
  • Delivery Time : 20-45 days
  • Brand Name : SBS

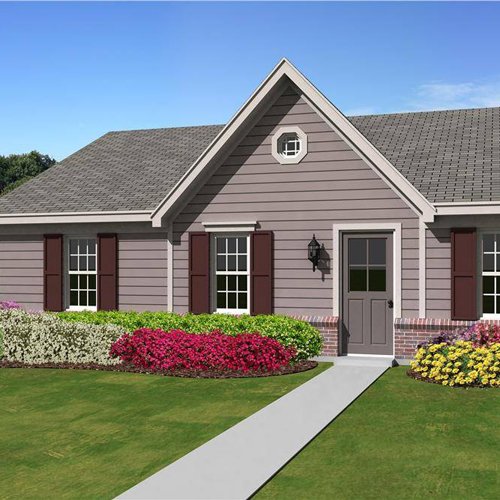

Modern steel villa design

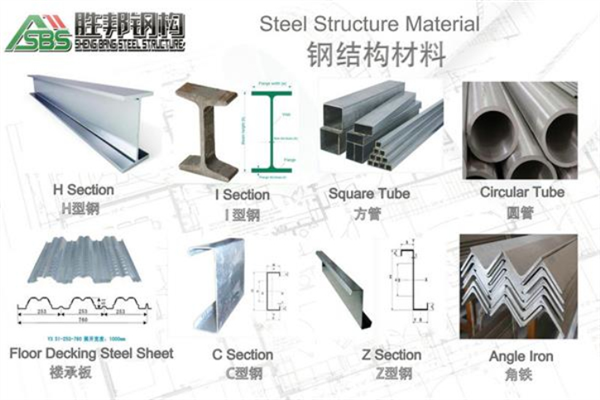

1. The detail material for the steel structure

Steel Villa is more stable than the one that made of welding frame steel.Besides, it is cheaper, more economic. With long lifespan,  which can last a50-70 years, all the materials of steel villa is Q550.  It is locked with bolts, which can be used repeatedly without any maintenance.


2. Product detials

1.Opinions

1) We can supply all kinds of steel structures, steel building, metal building, modular house, steel frame for warehouse, workshop, garage etc, steel beams, other riveting and welding parts.

2) We can also make and develop new parts according to customers' drawings and detailed dimensions.

2. Specifications

1) Size: MOQ is 200m2, width X length X eave height, roof slope

2) Type: Single slope, double slope, muti slope; Single span, double-span, Multi-span, single floor, double floors

3) Base: Cement and steel foundation bolts

4) Column and beam: Material Q345(S355JR)or Q235(S235JR) steel, all bolts connection! Straight cross-section or Variable cross-section

5) Bracing: X-type or V-type or other type bracing made from angle, round pipe, etc

6) C or z purlin: Size from C120~C320, Z100~Z200

7) Roof and wall panel: Single colorful corrugated steel sheet 0.326~0.8 mm thick, (1150 mm wide), or sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50 mm ~ 100 mm.

8) Accessories: Semi-transparent skylight belts, Ventilators, down pipe, Galvanized gutter, etc

9) Surface: Two lays of Anti-rust Painting

10) Packing: Main steel frame without packing load in 40'OT, roof and wall panel load in 40'HQ

3. Design Parameters

If you need we design for you, pls supply us the following parameter together with detail size

1) Live load on roof (KN/M2)

2) Wind speed(KM/H)

3) Snow load (KG/M2)

4) Earthquake load if have

5) Demands for doors and windows

6) Crane  (if have) , Crane span, crane lift height, max lift capacity, max wheel pressure and min wheel pressure!


3. Guidance installation

Shengbang Steel Structure Company can supply the guidance installation service.Usually steel structure building is a large installation engineering. If customers may need the professional technical engineer to supervise the installation on site overseas, the customer must to inform before 1 months from leave the China . But customer should coordinate with us for following aspects:

Customer should provide:

1) Translator or assistant on site.
2) All costs raised including:
A. visa fee

B. Round trip flight ticket

C. Accident insurance for the supervisor during the period

D. Accommodation

E. Daily meals

F. Internet

G. Local traffic fee (if any)

3) The customer should pay the engineer with supervision fee, which can be  negotiated and decided by both.

4) Customer has the responsibility to provide necessary security system to protect the supervisor, especially in some unrest countries.

There have some guidance installation picture:

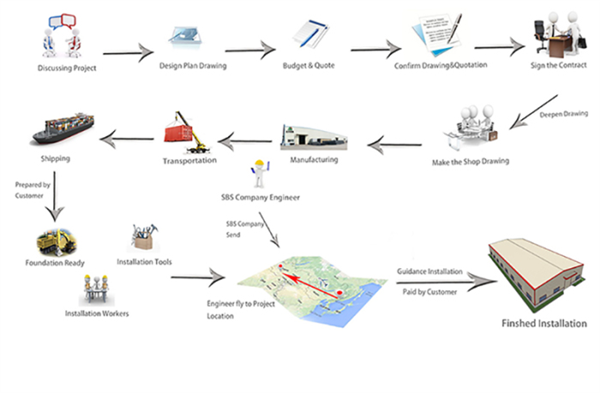

Service flow path:

 Discussing Project——Design Plan Drawing——Budget & Quote——Confirm Drawing&Quotation——Sign the Contract——Make the shop Drawing——Manufacturing——Transportation——Shipping——Foundation Ready——Guidance Installation——Finshed Installation


Application range-Industry

Industry steel structure included warehouse,workshop,garage,hangar,platform.
 Steel structure features of high fire resistance, strong corrosion resistance. Industry steel structure warehouse usually made of steel beams, steel columns, steel trusses and other components of the composition; each component using welds, bolts or rivets to connect. The usage scale includes large-scale workshop, or used for the warehouse, supermarkets, entertainment centers and modular steel structure garage.
