• Guangya steel villa Guangya steel villa

Guangya steel villa

  • Place of origin : Guangdong,China
  • Model Number : Steel structure GYSV
  • Price Terms : FOB price
  • Payment Terms : By T/T
  • Package : Seaworthy
  • Minimum Order : 1 set
  • Delivery Time : 20-45 days
  • Brand Name : SBS

Guangya steel villa






1.STEEL STRUCTURE VILLA

Steel structure villa industrial production using a combination of standard components, it has many advantages: flexible design, cost control, construction period is short, fast and convenient way to pay, environmental protection, good shock resistance, safer, more flexible, more savings energy. Steel structure villa widely built in tourist attractions, the seaside resort around the house or other purposes. If you want to understand the benefits of more steel structure villa, please contact us, we will answer your questions in detail.

2. STEEL STRUCTURE VILLA Product Detail information

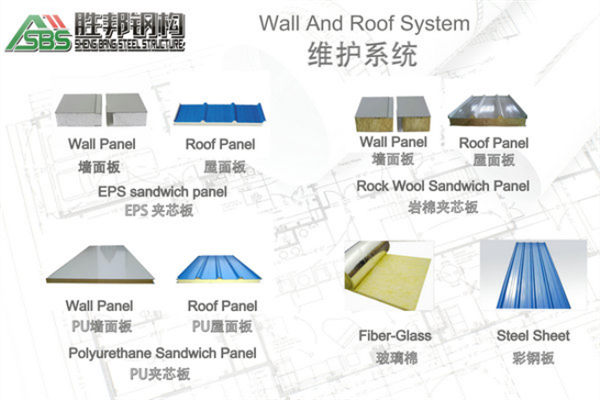

1) Steel Structure Panel material

The steel structure panel material included EPS sandwich panel,Rock wool sandwich panel,PU sandwich panel,fiber-glass ,steel sheet.

Steel structure panel material: including wall panel and roof panel

Sandwich core materials: EPS, PU, rock wool, glass wool

Thickness of sandwich panels: 50mm, 75mm, 100mm, 150mm

Single color plate material thickness: 0.376mm, 0.426mm, 0.476mm

1.STEEL STRUCTURE VILLA
Steel structure villa industrial production using a combination of standard components, it has many advantages: flexible design, cost control, construction period is short, fast and convenient way to pay, environmental protection, good shock resistance, safer, more flexible, more savings energy. Steel structure villa widely built in tourist attractions, the seaside resort around the house or other purposes. If you want to understand the benefits of more steel structure villa, please contact us, we will answer your questions in detail.


FIBER GLASS

Glass wool adopts the most advanced centrifugation technique to fiber glass fibrosis, Such products has large amount and very thin glass fiber inside. Its total surface area is very large also, so as to strengthen the resistance of the air, making the air unable to flow and eliminating the air convection heat transfer; Similarly, huge friction decays vibration of the sound propagation carriers - air quickly, which ensures glass wool's good thermal insulation and sound absorption effect. It is also good material for sound absorption and noise reduction in steel structure building.

2) Rock Wool Sandwich Panel

Rock wool sandwich panel is not better than polystyrene and polyurethane sandwich  panel with regard to sole weight, heat conduction, compressive strength, water absorption rate and other physical and mechanical properties. However,  it can be used under the service temperature of 600℃. Besides, this type panel possesses the outstanding feature of being level A incombustibility, thus rock wool sandwich panel  serviceable range is expanded to light weight construction materials for high requirement on fire-protection rating.

3. Product details

Main structure

Steel Welded H Section

Purlin

C Section Channel or Z Section Channel

Roof Cladding

Sandwich Panel or Corrugated Steel Sheet with Fiber Glass Wool Coil

Wall Cladding

Sandwich Panel or Corrugated Steel Sheet

Tie Rod

Circular Steel Tube

Brace

Round Bar

Column & Transverse Brace

Angle Steel or H Section Steel or Steel Pipe

Knee Brace

Angle Steel

Roof Gutter

Color Steel Sheet

Rainspout

PVC Pipe

Door

Sliding Sandwich Panel Door or Metal Door

Windows

PVC/Plastic Steel/Aluminum Alloy Window

Connecting

High Strength Bolts

Packing

Can be loaded into 40ft'GP/HQ/OT, or 20 ft'container.

Drawing

We can make the design and quotation according to your requirement or your drawing

4.Performance:

Safety and reliable lightweight steel construction system

Quick and easy to assemble

Building material can be to recycle, never building garbage

Convenient to take apart and install.

Doors, windows and indoor partition can be located at any position, stairs can be in outside or inside

Lightweight steel construction treated by anti-corrosive spray handling for long use

Strictly sealing, thermal insulation, water-, fire- and moisture-resistant

Any dimension and customized design are available

Attractive appearance.

Comfortable.

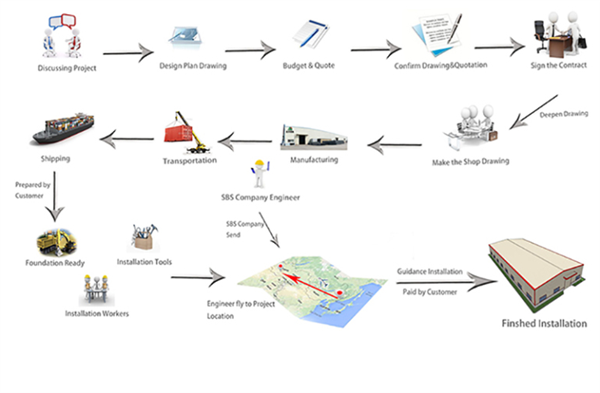

5. Service flow path:

 Discussing Project——Design Plan Drawing——Budget & Quote——Confirm Drawing&Quotation——Sign the Contract——Make the shop Drawing——Manufacturing——Transportation——Shipping——Foundation Ready——Guidance Installation——Finshed Installation
