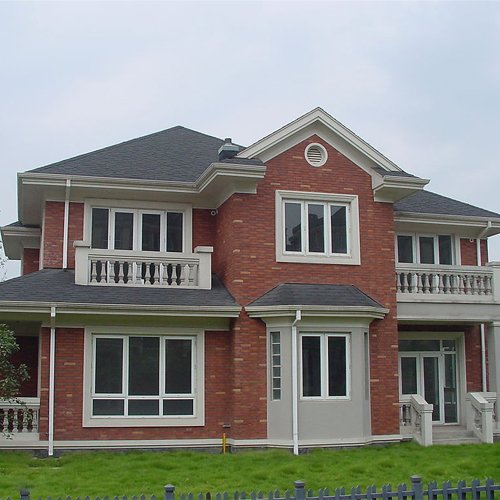

Modern design of light steel villa

  • Place of origin : Guangdong,China
  • Model Number : Steel structure MDOLSV
  • Price Terms : FOB price
  • Payment Terms : By T/T
  • Package : Seaworthy
  • Minimum Order : 1 set
  • Delivery Time : 20-45 days
  • Brand Name : SBS

Modern design of light steel villa

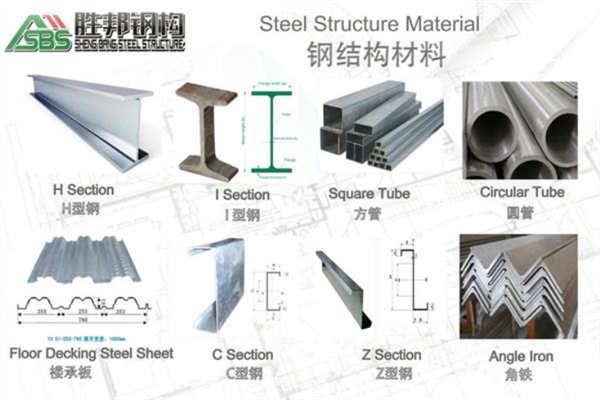

1. The detail material for the steel structure technical parameters


1)H section steel

H type steel is an economic efficient section material with optimized cross section area allocation and more reasonable ratio of strength to weight. It is named because of its letter "H" cross section. Since its different parts are of orthogonal configuration, h-beam has advantage of good bending capacity, simple construction, cost saving and structure light weight etc., has been widely used.

2)H-beam is divided into:

The flange wide type (HW)

The flange middle type (HM)

The narrow flange type (HN)

Thin-wall h-beam type (HT)

H section steel pile type (HU)

2. Provide data

Item Name

Steel structure building

Size

Length, Width, Roof height and Eave Height

Roof and Wall

PU, EPS, Rock Wool sandwich panel

Door and Window

PVC or Aluminum Alloy

Column and Beam

Hot rolled H section , I section or Galvanized

Purlin

C-Section and Z-section

Surface

2 primer and 1 finished paint

Local Climate

1. wind speed  2. Rain load  3. Snow load  4. Earthquake grade if any, etc.

Crane parameter

If need crane beam, parameter is in need.

Drawing

1. Quote as clients' drawing
2. Design as per clients' requests.

Package

In container or as per requests.

Load in

20 ft', 40 ft' GP, /HQ/OT container

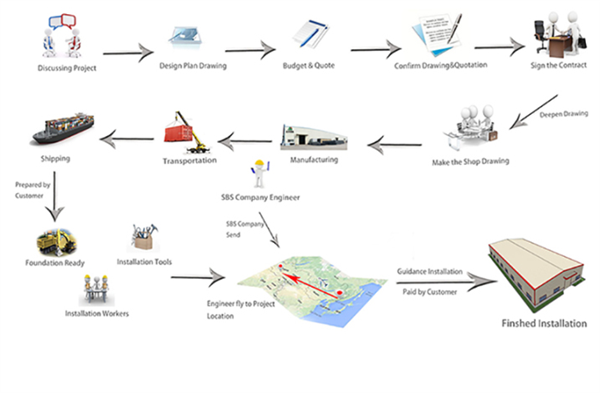

3.Guidance installation
  Shengbang Steel Structure Company can supply the guidance installation service.Usually steel structure building is a large installation engineering. If customers may need the professional technical engineer to supervise the installation on site overseas, the customer must to inform before 1 months from leave the China . But customer should coordinate with us for following aspects:
Customer should provide:
  1) Translator or assistant on site.
  2.)All costs raised including:
       A. visa fee
       B. Round trip flight ticket
       C. Accident insurance for the supervisor during the period
       D. Accommodation
       E. Daily meals
       F. Internet
       G. Local traffic fee (if any)
 3) The customer should pay the engineer with supervision fee, which can be  negotiated and decided by both.
 4)Customer has the responsibility to provide necessary security system to protect the supervisor, especially in some unrest countries.



4.Description of steel structure building

1)Certification:SGS Standard,GHD Standard,ISO9001:2000

2)Steel structure design common norms are as follows:
"Cold-formed steel structure technical specifications" (GB50018-2002)
"Construction Quality Acceptance of Steel" (GB50205-2001)
"Technical Specification for welded steel structure" (JGJ81-2002, J218-2002)
"Technical Specification for Steel Structures of Tall Buildings" (JGJ99-98)

3)Commonly used steel grades and performance of steel
Carbon structural steel: Q195, Q215, Q235, Q255, Q275, etc.
High-strength low-alloy structural steel
Quality carbon structural steel and alloy structural steel
Special purpose steel

4) Wall & roof can be used by steel sheet, EPS sandwich panel, rock wool sandwich panel & PU sandwich panel.




5、FAQ
1)Why choose the steel structure?

        *Steel has the higher strength.
        * 80% recyclable, Steel is the most recycled material in the world.
        * No warping, no cracking, no chemical treatments.
        * Stronger connection.
        * Lower transport costs due to lightweight frames.
        * Steel frames will not burn, fire proof.
      * Lightning will not affect a steel framed house since steel creates a positive earth. Lightning energy is conducted straight to the ground.
        * Each steel structure is a independent engineered

2)Are steel structure buildings expensive?
The steel structure of SBS company is economic. Its technology and materials used decreases waste expenses such as wood, decorative stone, brick etc. All the material including the steel frames, wall body and roof for installation are prefabricated during the production process, therefore the labor costs for installation is decreased.
3)What kinds of material are available?
SBS company has a wide variety of wall body, doors, windows, roof panel and associated parts to fit our houses. Refer to the materials page for more details.
