• Steel Structure Workshop in Indonesia Steel Structure Workshop in Indonesia

Steel Structure Workshop in Indonesia

  • Place of origin : Guangdong,China
  • Model Number : Steel structure workshop6
  • Price Terms : FOB price
  • Payment Terms : By T/T
  • Package : Seaworthy
  • Minimum Order : 1 set
  • Delivery Time : 30~45 days
  • Brand Name : SBS

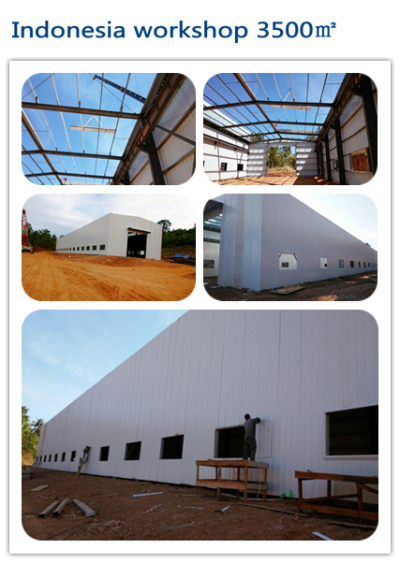

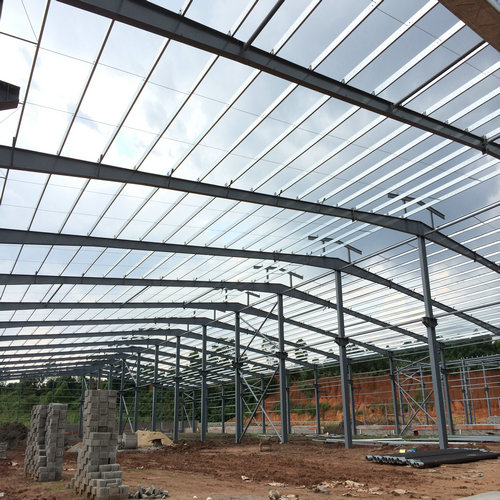

Steel Structure Workshop in Indonesia

Jagat Baja Prima Utama’s 10,000 sq meter facility includes all physical and professional resources required for state-of-the-art steel structure design, engineering and fabrication. Full computerized support for the CAD and drafting units ensure full component integration and effective coordination and implementation of design updates.

Fabrication facilities include current technology multi-spindle CNC drilling machine and a high-efficiency auto-matic cold circular saw. Transfer lines can cut and drill beams up to 1,200 cm by 500 cm.


Available Strength
The steel core shall be designed to resist the entire axial force in the brace. The brace design axial strength, φPysc (LRFD), and the brace allowable axial strength, Pysc /Ω (ASD), in tension and compression, in accordance with the limit
state of yielding, shall be determined as follows:
Pysc = FyscAsc (F4-1)
φ = 0.90 (LRFD) Ω = 1.67 (ASD)
where
Asc = cross-sectional area of the yielding segment of the steel core, in.2 (mm2)
Fysc = specified minimum yield stress of the steel core, or actual yie

1.STEEL STRUCTURE WORKSHOP

Steel structure workshop  main bearing component is composed of steel. The steel structure Workshop has the advantages of wide span, high strength, light weight, low cost, temperature protection, save energy,beautiful appearance, short construction time, good effect of insulation, long using life, space-efficient, good seismic performance, flexible layout,etc.

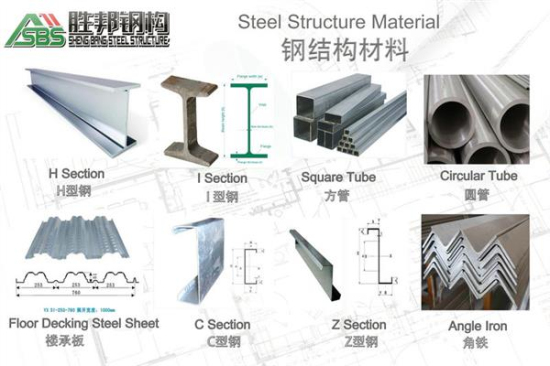

2.Material of steel structure

Steel Structure Workshop is formed by the main framework through linking up the H beam,C purline,Z purline,U purline steel components. Roof and wall using a variety of panels together with other components such as windows and doors.



All facilities are supported by a solid human resources base, with extensive qualifications and experience in engineering, procurement, on-site management and quality control.

3.Product Details

Usage

Steel Structure workshop,warehouse,office or so on.

Size

length*width*high, and the ridge height, slope

 Standard

 China Standard,England Standard,America Standard or Australia Standard(please supply the detail date)

Crane

Do you need the crane?If you need please tell me the loding.

Country

Which country that the building will be?

Design load

Wind speed, Snow load, Earthquake

Wall and Roof

Steel sheet or sandwich panel

Insulation

Fiber glass, EPS,Rock wool,PU,please tell me the thickness

Surface

Painted (alkyd paint or Epoxy paint) ,Hot dip galvanize

Window

Quantity, material, dimension (W*H) and position

Door

Quantity, material, dimension (W*H) and position

Accessories

Down pipe, Out gutter, Ventilator, skylight etc.
































4、Design capacit


Prefabricated Steel Structure Workshop are very durable. They are strong enough to withstand heavy snowfall, high winds, and strong earthquakes. The steel paneling can also be coated with aluminum compounds to prevent rusting and increase the life of the panels. Prefabricated Steel Structure Workshop are also non-combustible so it’s unlikely they will be destroyed by fire. This makes them perfect for storing hazardous chemicals. In addition to the durability, another benefit is the speed of construction.



Steel-Structure-Workshop-in-Indonesia-3.jpgSteel-Structure-Workshop-in-Indonesia-4.jpg

Steel-Structure-Workshop-in-Indonesia-5.jpgSteel-Structure-Workshop-in-Indonesia-6.jpg

 5.Guidance installation

  Shengbang Steel Structure Company can supply the guidance installation service.Usually steel structure building is a large installation engineering. If customers may need the professional technical engineer to supervise the installation on site overseas, the customer must to inform before 1 months from leave the China . But you should coordinate with us for following aspects:
  1) Translator or assistant on site.
  2.)All costs raised including:
       A. visa fee
       B. Round trip flight ticket
       C. Accident insurance for the supervisor during the period
       D. Accommodation
       E. Daily meals
       F. Internet
       G. Local traffic fee (if any)
 3) The customer should pay the engineer with supervision fee, which can be  negotiated and decided by both.
 4)Customer has the responsibility to provide necessary security system to protect the supervisor, especially in some unrest countries.

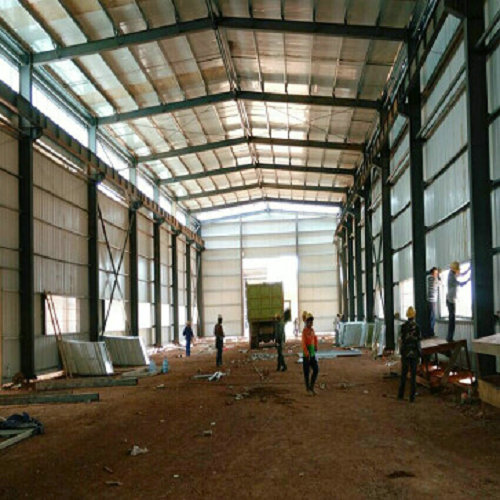

some guidance installation picture:


The panel design shear strength, φVn (LRFD), and the allowable shear strength,
Vn /Ω (ASD), in accordance with the limit state of shear yielding, shall be determined
as follows:
Vn = 0.42Fy twLcf sin2α (F5-1)
φ = 0.90 (LRFD) Ω = 1.67 (ASD)
where
Lcf = clear distance between column flanges, in. (mm)
tw = thickness of the web, in. (mm)
α =angle of web yielding in degrees, as measured relative to the vertical.
