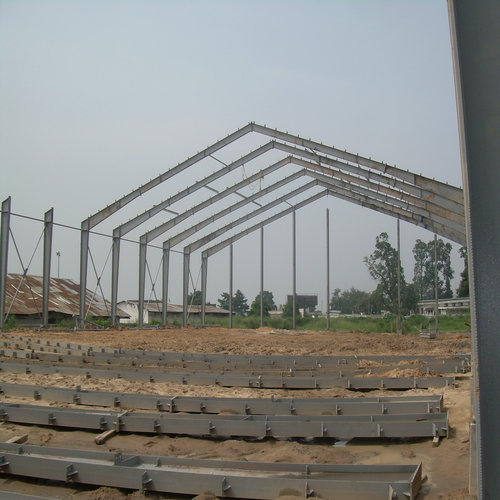

Steel Structure Workshop in Congo

  • Place of origin : Guangdong,China
  • Model Number : Steel structure workshop4
  • Price Terms : FOB price
  • Payment Terms : By T/T
  • Package : Seaworthy
  • Minimum Order : 1 set
  • Delivery Time : 30~45 days
  • Brand Name : SBS

Prefabricate steel structure Workshop


1、Product Detail information

1)EPS SANDWICH PANEL

EPS sandwich panel takes the color steel plates as surface layer, the flame-resistant polystyrene foam board as core material, the polyurethane as plastering agent. The panel is formed by continuous heat and compression, synchronous scale and cut. The performance in heat reserve and heat insulation is excellent
The sandwich panel is fixed by the connection and the purlin, then the whole integrative rigidity will be enhanced higher, the whole roof and the wall panels will be enhanced to work well


2)PU Sandwich Panel
Polyurethane panel takes the polyurethane as core material. Except having the same characteristics of the EPS sandwich panel, the Pu sandwich panel possesses the features of being nonflammable, wide range of service temperatures. The core material application temperature is -196℃~+130℃, the instant service temperature reaches +200℃. When used in low temperature environment, PU sandwich panel is small shrinkage and non-brittle. Therefore, it is the ideal constructive heat-insulating material for cold storage. Except that, PU sandwich panel has the advantages of being of non-toxic, non-corrosiveness, stable heat conductivity. The panel is extensively used as roof tile, wall body, ceiling and partition wall of steel structure workshop and prefabricated house.


2、Product details

Main structure

Steel Welded H Section

Purlin

C Section Channel or Z Section Channel

Roof Cladding

Sandwich Panel or Corrugated Steel Sheet with Fiber Glass Wool Coil

Wall Cladding

Sandwich Panel or Corrugated Steel Sheet

Tie Rod

Circular Steel Tube

Brace

Round Bar

Column & Transverse Brace

Angle Steel or H Section Steel or Steel Pipe

Knee Brace

Angle Steel

Roof Gutter

Color Steel Sheet

Rainspout

PVC Pipe

Door

Sliding Sandwich Panel Door or Metal Door

Windows

PVC/Plastic Steel/Aluminum Alloy Window

Connecting

High Strength Bolts

Packing

Can be loaded into 40ft'GP/HQ/OT, or 20 ft'container.

Drawing

We can make the design and quotation according to your requirement or your drawing

















































3.Transportation

Steel structure is mainly composed of steel column, steel beam, steel frame and the rigid support and so on, so steel structure component volume is larger, The mainly transportation for export is as follow:

1). Seaworthy

 In general, after customer order, our engineering technology department design the steel structures will be according to the 40 'HQ and 40' open top container inside size      to design the shipment, in most cases, we use 40 'HQ and 40' open top shipping container shipment to pack steel structures.

Transportant_1

2).Package for the steel frame

Package-_



If you want to use the 40 HQ container to transportation the whole steel structure product. You can do the steel frame to package ,use the cable wire to fix. But you must paid for the steel frame and baling charges.



4.Advantages

The advantages of Steel Structure Workshop are as follows:
1. Features: fast and flexible to assemble, secure and safe, thermal and noise insulation, water proof and fire prevention;
2. Cost-effective: Fast and easy installation greatly shorten the construction time which reduce the costs;
3. Durability: The whole structrure is easy in maintenance, which can be used for more than 50 years.
4. Perfect design: Perfect design completely avoids leaks and water seepage. Meanwhile, it’s also in line with the national level of fire prevention.
5. Carrying capacity: can resists the impact of strong wind and seismic performance and bears heavy snow loads.
Welding_

5.Company Profile:

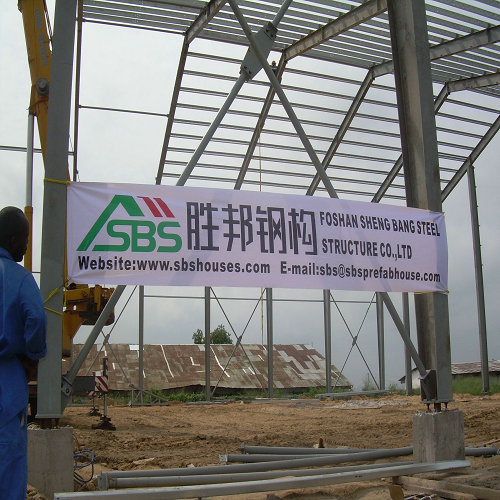

Foshan Shengbang Steel Structure Co., Ltd.Possesses professional large-scale steel structure production equipments and the automatic spraying production
line, so we can satisfy the different customers demand.We takes "build your future" as mission and takes company growth as premise.The company has trained many
high quality marketing personnel, professional technician and construction workers.We take the customers' demand as the guidances, then provide reasonable,
scientific and effective solution for customers.We regard practical growth, innovationand group solidarity as our company spirit, so that we can offer all round service to customers.
