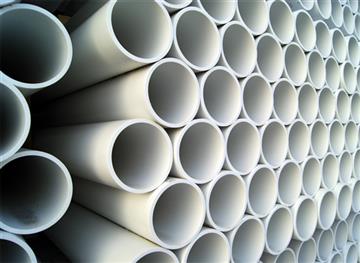

PVC waterfall pipe

  • Case Number : PVCWP

PVC waterfall pipe

PVC pipe and PVC-U pipe are formed by hot pressing of polyvinyl chloride (PVC) resin and stabilizers, lubricants, etc. They are the first developed and applied plastic tubing.

Global Standard:GB/T5836.1-2006

Commonly used PVC pipe drains regular specifications are as follows: nominal diameter, respectively:32mm, 40mm, 50mm, 75mm, 90mm, 110mm, 125mm, 160mm, 200mm, 250mm, 315mm. The length of the PVC - U pipes for common is 4m/6m.

Function: There is water pipe and drain pipe of PVC, used in municipal/industrial/civil water supply and drainage, irrigation and vegetation water, etc.

Application: PVC pipes are widely used in building materials, packaging, pharmaceutical and other industries. In the steel structure system, it is mainly used in steel structure building water supply and drainage.

Performance index

Project

Standard

Tensile yield strength

≥40MPa

Vicat softening temperature

≥90℃

Flat test

Without breakdown

Drop weight impact test

≤10%

Appearance

With smooth inside and outside wall, level off, there is no air bubbles, cracks, and obvious mark lines, decomposition of sag and uneven color on the color line

Size

Exterior wall thickness

Correspond GB/T5836.1-2006 Correspond GB/T5836.1-2006

The same cross section thickness deviation

≤14%

Longitudinal shrinkage ratio

≤5%
