H section steel

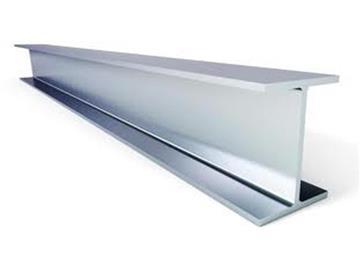

H type steel is an economic efficient section material with optimized cross section area allocation and more reasonable ratio of strength to weight. It is named because of its letter "H" cross section. Since its different parts are of orthogonal configuration, h-beam has advantage of good bending capacity, simple construction, cost saving and structure light weight etc., has been widely used.

H-beam is divided into:

The flange wide type (HW)

The flange middle type (HM)

The narrow flange type (HN)

Thin-wall h-beam type (HT)

H section steel pile type (HU)

H-type steel, optimized from I-shaped steel, is economic cross section steel with better cross-section mechanical performance. Especially, it is named because of its letter "H" shape section.

Its characteristics are as follows:

1. Wide flange, large lateral stiffness and strong anti-bending ability.

2. Two parallel flange surfaces enable easy and simple connection, processing and installation.

3. Compared with welding joist steel, H-type has lower cost, high precision, small residual stress. There is no need for expensive welding material and welding seam detection, so the steel structure production is cost saving.

4. Under the same cross section load, reduction weight of hot rolled H-type steel structure can be % more than the traditional steel structure.

5. Compared with concrete structure, hot rolled H steel structure can increase 6% using area. Meanwhile, its self-reduce weight also reduces the internal structure design force.

6. H section steel can be processed into T steel. Honeycomb beam can be formed into various sorts of cross section by combination, which greatly meets the demand of engineering design and production.

Specification

Series

Model

H*B

H

B

T1

T2

kg/m

Series

Model

H*B

H

B

T1

T2

kg/m

HW Wide flange

100*100

100*100

100

100

6

8

17.2

HM Middle flange

600*300

582*300

582

300

12

17

137

125*125

125*125

125

125

6.5

9

23.8

588*300

588

300

12

20

151

150*150

150*150

150

150

7

10

31.9

594*302

594

302

14

23

175

175*175

175*175

175

175

7.5

11

40.4

HN Narrow flange

150*75

150*75

150

75

5

7

14.3

200*200

200*200

200

200

8

12

50.5

175*90

175*90

175

90

5

8

18.2

200*204

200

204

12

12

56.7

200*100

198*99

198

99

4.5

7

18.5

250*250

250*250

250

250

9

14

72.4

200*100

200

100

5.5

8

21.7

250*255

250

255

14

14

82.2

250*125

248*124

248

124

5

8

25.8

300*300

294*302

294

302

12

12

85

250*125

250

125

6

9

29.7

300*300

300

300

10

15

94.5

300*150

298*149

298

149

5.5

8

32.6

300*305

300

305

15

15

106

300*150

300

150

6.5

9

37.3

350*350

344*348

344

348

10

16

115

350*175

346*174

346

174

6

9

41.8

350*350

350

350

12

19

137

350*175

350

175

7

11

50

400*400

388*402

388

402

15

15

141

400*200

396*199

396

199

7

11

56.7

394*398

394

398

11

18

147

400*200

400

200

8

13

66

400*400

400

400

13

21

172

450*200

446*199

446

199

8

12

66.7

414*405

414

405

18

28

233

450*200

450

200

9

14

76.5

428*407

428

407

20

35

284

500*200

496*199

496

199

9

14

79.5

400*408

400

405

21

21

197

500*200

500

200

10

16

89.7

HM Middle flange

150*100

148*100

148

100

6

9

21.4

506*201

506

201

11

19

103

200*150

194*150

194

150

6

9

31.2

600*200

596*199

596

199

10

15

95.2

250*175

244*175

244

175

7

11

44.1

600*200

600

200

11

17

106

300*200

294*200

294

200

8

12

57.3

606*201

606

201

12

20

120

350*250

340*250

340

250

9

14

79.7

700*300

692*300

692

300

13

20

166

400*300

390*300

390

300

10

16

107

700*300

700

300

13

24

185

450*300

440*300

440

300

11

18

124

800*300

792*300

792

300

14

22

191

500*300

482*300

482

300

11

15

115

800*300

800

300

14

26

210

488*300

488

300

11

18

129

900*300

900*300

900

300

16

28
