Product Features

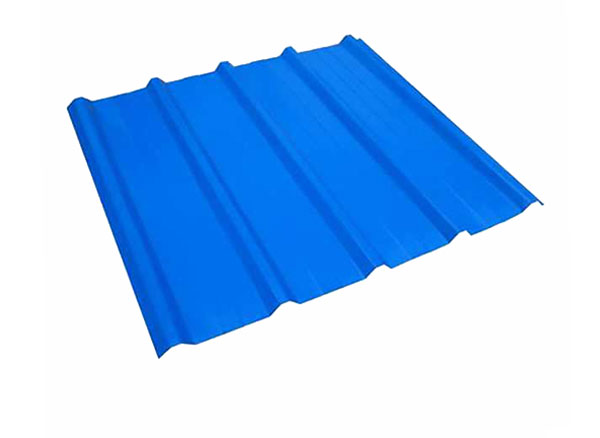

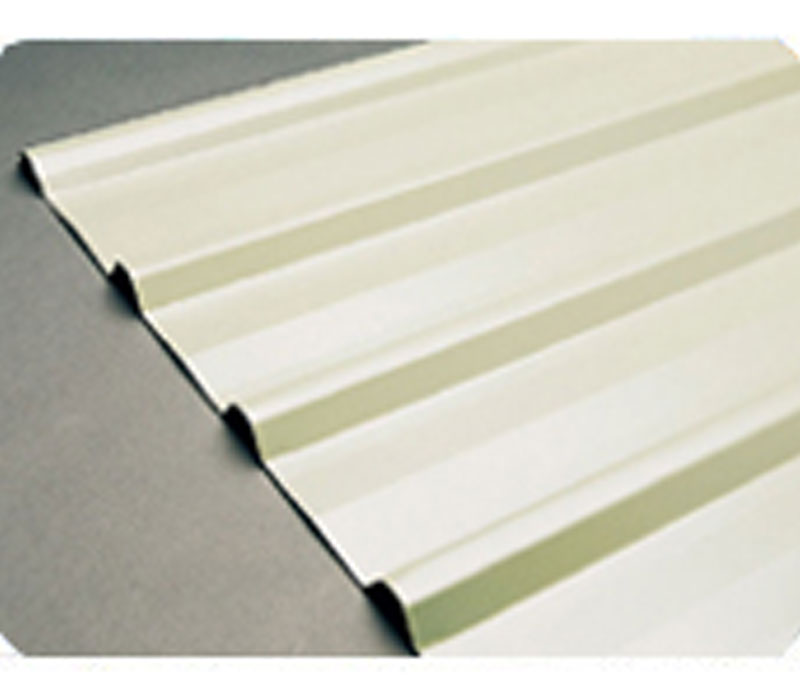

LYSAGHT TRIMDEK®is our most cost effective roofing and walling profile. It is available in both convex and concave pre-curved sheets, to meet architectural features.


·         Self-drilling installation. Fasteners at the crest of the ribs for roofing, and at the valley of the ribs for walling;

·        Overlapping side ribs are designed to prevent the capillary entry of water;

·         Compatible coated fasteners available to give equivalent service life of the system;

·         The panels manufactured from Clean COLORBOND®pre-painted G550 steel or ZINCALUME®unpainted G550 steel;

·         Appealing architectural appearance and multiple-colour choice;

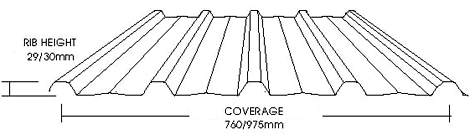

Schematic


Technical Specifications



     TCT(mm)

0.47

0.53

     Coverage (mm)

760

975

     Rib Height (mm)

29

30



     Maximum Recommended Support Spacing in Non Cyclonic Areas

     Roof Application

Single Span (mm)

1000

1400

End Span (mm)

1200

1600

Internal Span

1700

2000

     Wall Application

Single Span (mm)

1600

1700

End Span (mm)

1800

1900

Internal Span

2200

2300



     For cyclonic ares data,please contact technical department



     Minimum Recommended Roof Pitch

3°(1/20 or 5%)



     Minimum Curved Radius

500mm



     Coating Mass

150g/m2



     Yield Strength

550MPa



     Meets Australian Standard

AS1397-2001 AS/NZS 2728-2007
